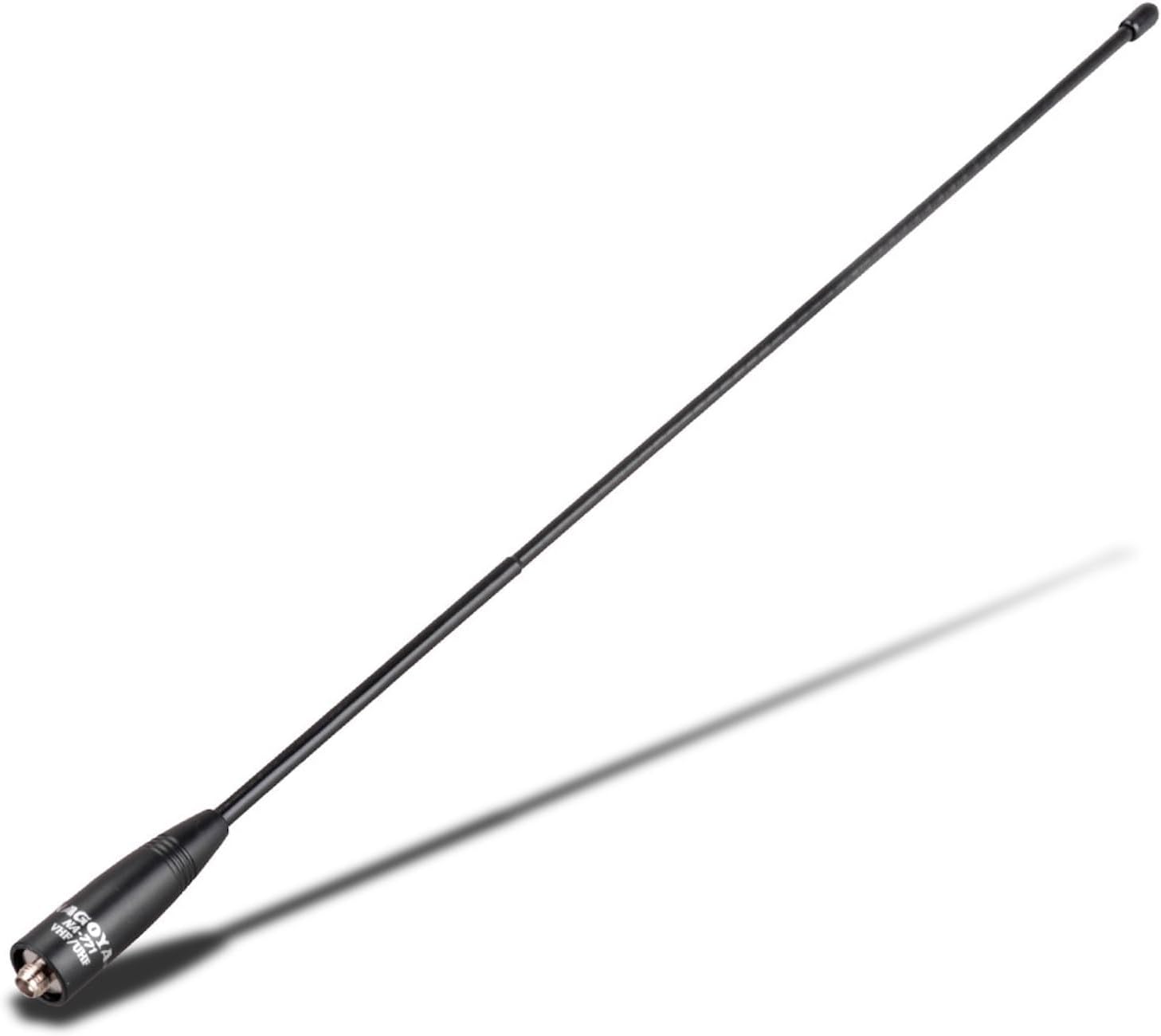

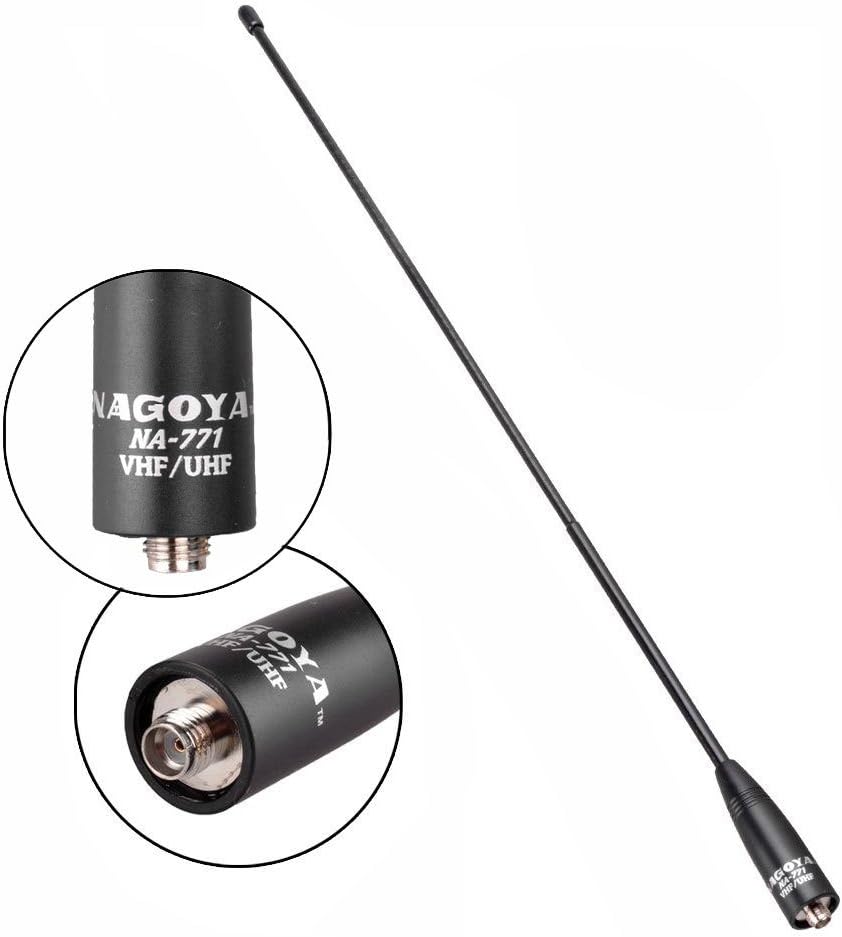

Description:
Antenna interface is BNC.
This antenna features a 2.15dBi signal with up to 10W of power.
Boost the signal of your radio significantly.
Allow you to get longer range on your handheld radio, like BaoFeng UV-5R radio.
The antenna fit for most BNC radio.

for Ken wo-od handheld Radio :
Tk-2107 ,TK-3107 ,TK-2260 ,TK-3260, TK-3160 ,TK-278 ,TK-378...etc
for Linton Radio:
LT-2288, LT-3288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268 , ..etc
for PUXING Handheld Radio:
PX-777 , PX-777 PLUS , PX-666, PX-3288
for Wouxun Radio:
UV899, UV2D, UVD1P

Specifications:
Item Type: Antenna
Model: NA-771
Material: Plastic
Color: Black
Length: 38cm/14.96in (Approx.)
Connector: BNC
Max Power: 10W
Reference distance: extend 1.2~1.5 times
Frequency band: TX:144/430MHz; RX:120/150/300/450/900MHZ
Gain: 2.15dBi(144MHz); 3.0dBi(430MHz)
V.S.W.R: <1.5
Quantity: 1 PC (other accessories demo in the picture is not included)

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 * Radio Antenna NA771
